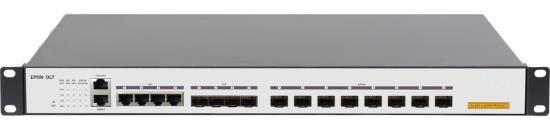

EPON OLT LE8（8*EPON+4*GE+4*10G SFP+）
LE8 is a high-density 1U box EPON OLT series. It uses the industry-leading commercial chip to fully support the ...
EPON OLT LE8（8*EPON+4*GE+4*10G SFP+）
|
General |
||
|
Item |
LE8 |
|
|
Dimension |
440mm*309mm*44mm |
|
|
Weight |
2.5kg |
|
|
Data interface |
8 downstream EPON ports,4*1000Base-T uplink ETH ports and 4 Uplink SFP+ ports |
|
|
Management |
1*10/100Base-T RJ45 port, with management |
|
|
Indicator light |
RUN: system is running ALM: system alarms PWR: power indicator EPON1-EPON8: PON port link status 4*GE: ETH uplink port link status 4*XG: SFP+ uplink port link status |
|
|
Power supply |
AC: Input 90～264V |
|
|
Operation |
working temperature:-5℃?+50℃ working humidity:10％-90%(non-condensation) |
|
|
Software features |
||
|
EPON |
IEEE 802.3ah standard, CTC 2.0/2.1/3.0 standard Support standard OAM and extended OAM High splitting ratio, each PON port supports 64*ONUs Maximum transmission distance 20KM Support uplink FEC, downlink FEC(forward error correction) Bandwidth allocation mechanism 5 T-CONT bandwidths Static bandwidth allocation Dynamic bandwidth allocation |
|
|
MAC |
MAC Black Hole Port MAC Limit |
|
|
VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ(Stack VLAN) VLAN Swap and VLAN Remark and VLAN Translate Based on ONU service flow VLAN add, delete, replace |
|
|
L2 Protocol |
STP, RSTP, MSTP |
|
|
Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
|
L3 Protocol |
OSPF, IS-IS, BGP |
|
|
User Security |
Anti-ARP spoofing Prevent ARP flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication DHCP anti-attack flood attack automatic suppression ONU isolation control |
|
|
Device security |
Anti-DOS attack(such as ARP, Syn flood, Smurf, ICMP attack),ARP detection, worm and Ms-blaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
|
Network security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding Supports IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPOE+upload user’s physical location Plain-text authentication of OSPF/RIPv2 and MD5 cartography authentication |
|
|
IPv4 |
ARP Proxy DHCP Relay DHCP Server Static route |
|
|
IPv6 |
ICMPv6 ICMPv6 redirection DHCPv6 ACLv6 Configured Tunnel 6to4 tunnel IPv6 and IPv4 Tunnels |
|
|
ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Support packet filtration of L2～L7 even deep to 80 bytes of IP packet head |
|
|
QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark CAR(Committed Access Rate),Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/flow supports 8 priority queues and scheduler of SP,WRR and SP+WRR. Congestion avoid mechanism, including Tail-Drop and WRED |
|
|
Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy MLDv2/MLDv2 Snooping |
|
|
Loop protection |
EAPS and GERP(recover-time<50ms) Loop-back detection |
|
|
Link protection |
Flex-Link(recover-time<50ms) RSTP/MSTP(recover-time<1s) LACP(recover-time<10ms) |
|
|
Device protection |
Double fault-tolerant backup of host program and configuration files 1+1 power hot backup |
|
|
Network maintenance |
Telnet-based statistics RFC3176 sFlow LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
|
|
Device management |
Web management Console/Telnet, Command-line interface（CLI） Upgrade via FTP System configuration with SNMPv1/v2/v3 RMON(Remote Monitoring) Support SNTP network time protocol |
|
