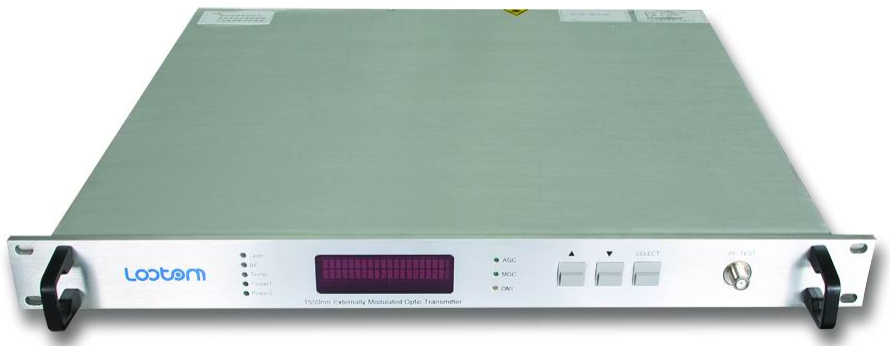

TFT 1550D Externally Modulated Optical Transmitter
single output or dual output optional. The output optical power ranges from 3dBm to 10dBm ...
TFT 1550D Externally Modulated Optical Transmitter
|
Parameter |
Index |
Remarks |
|
|
Optical Parameters |
Wavelength(nm) |
1550±10 |
|
|
Output power(dbm) |
2×7 |
Can be customized |
|
|
Optical return loss (dB) |
≥50 |
||
|
Connector type |
FC／APC |
Or SC／APC |
|
|
RF parameters |
Bandwidth(MHz) |
47～862/1000 |
|
|
Input level(dBμV) |
80±5 |
AGC |
|
|
Flatness(dB) |
≤±0.75 |
47~1000MHz |
|
|
Return loss(dB) |
≥16 |
||
|
Input inpedance(Ω) |
75 |
||
|
Link Parameters |
CNR(dB) |
≥53 |
|
|
CTB(dB) |
≥65 |
||
|
CSO(dB) |
≥65 |
||
|
SBS(dBm) |
13～19 continuous adjustable |
0.1dBm step |
|
|
General Parameters |
Interface |
RJ45, R232 |
|
|
Power(V) |
90～265 |
Or -48VDC |
|
|
Power loss (W) |
≤50 |
||
|
Working Temp (℃) |
-20～85 |
Automatically shell temp control |
|
|
Working relative humidity |
20%～85% |
||
