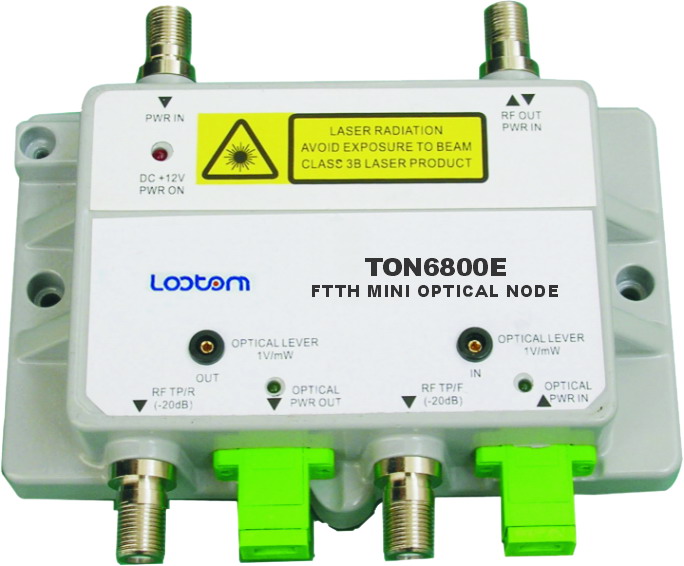

TON6800E FTTH Mini Fiber Node
TON6800E is bi-directional node designed for FTTH applications, is applied to be terminal equipment for television and data service ...
TON6800E FTTH Mini Fiber Node
|
Item |
Condition |
Unit |
Parameters |
|
Forward RF parameters |
|||
|
Bandwidth |
MHz |
87 ～ 870（1000） |
|
|
Flatness |
Worst |
dB |
±0.75 |
|
Impedance |
Ω |
75 |
|
|
RF out level |
dBmV |
Optical power:24±2@ -4dBmW Modulation OMI=3.7% |
|
|
RF reflect loss |
Worst |
dB |
16 |
|
RF out test point |
-dB |
20±0.75 |
|
|
CNR |
dBc |
＞48 @ –4dBmW Optical power |
|
|
CTB |
dBc |
＞70 @ –4dBmWOptical power |
|
|
CSO |
dBc |
＞65 @ –4dBmWOptical power |
|
|
Forward optical parameters |
|||
|
Receiving power |
dBm |
-8 ～ 0 |
|
|
Power test point |
V/mW |
+1V/mW |
|
|
Equivalent noise current |
＜4pA /√H |
||
|
Working wave length |
nm |
1200～1600 |
|
|
Backward RF parameters |
|||
|
Bandwidth |
MHz |
5 ~65 |
|
|
Flatness |
Worst |
± dB |
0.75 |
|
Impedance |
Ω |
75 |
|
|
RF reflect loss |
Worst |
- dB |
16 |
|
RF input level |
dBmV |
20 |
|
|
RF test point |
-dB |
20±0.75 |
|
|
Backward optical parameters |
|||
|
Transmitter type |
IFP |
||
|
Out power |
Standard |
dBmW |
0 |
|
Power test point |
V/mW |
+1V/mW |
|
|
Wave length |
nm |
1310 |
|
|
NPR |
dB |
20（≥30dB） |
|
|
General |
|||
|
Operating temperature |
℃ |
- 25～+65 |
|
|
Voltage |
VDC |
+12 ～ +24 |
|
|
Power consumption |
W |
4 |
|
|
surge protection |
KV |
6 |
|
|
RF output stability |
dB |
±0.75 |
|
|
Connector type |
SC/APC |
||
